BEE1681 EE16 Vertical Widened PIN5+2+2PIN Distribution Transformer And Power Transformer

BEE1681(EE16 Vertical Widened PIN5+2+2PIN) Distribution Transformer And Power Transformer

A power transformer is a static electrical device. It utilizes the principle of electromagnetic induction to convert alternating current energy of one voltage and current into alternating current energy of another or several voltages and currents of the same frequency. It is mainly composed of an iron core, windings, oil tank, cooling device, insulating bushing, tap changer and other parts, and plays a key role in increasing or decreasing voltage, transmitting and distributing electrical energy in the power system.
During the process of power transmission, power transformers can reduce the current in transmission lines by increasing the voltage, thereby reducing energy loss in the lines and improving the efficiency of power transmission. They can achieve long-distance and large-capacity power transmission.

DETAILED INTRODUCTION

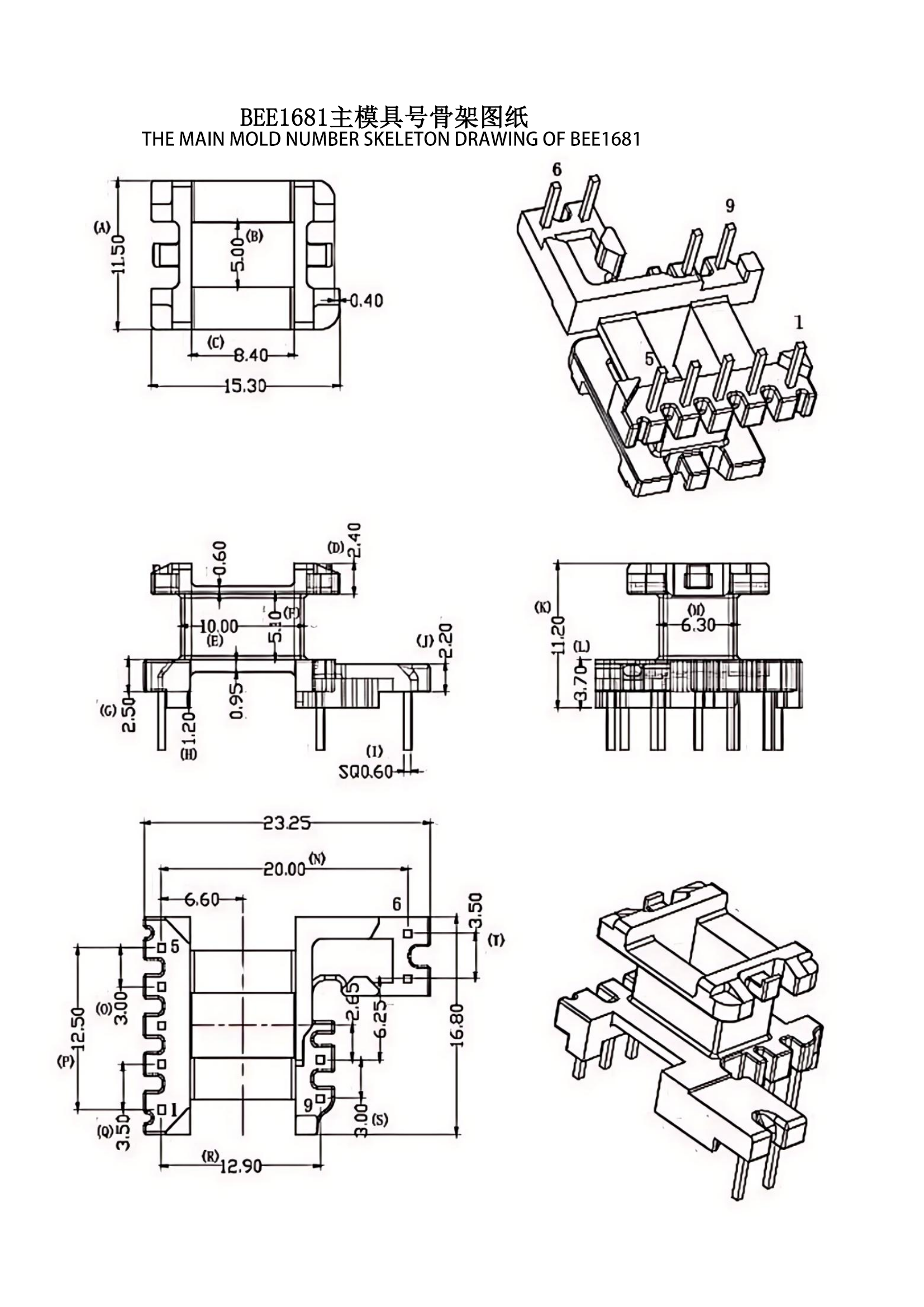

CASE DIAGRAM

Distribution Transformer And Power Transformer

Distribution Transformer Power Transformer

Distribution Power Transformer

BEE1681 EE16 Vertical Widened PIN5+2+2PIN Distribution Transformer And Power Transformer Images
